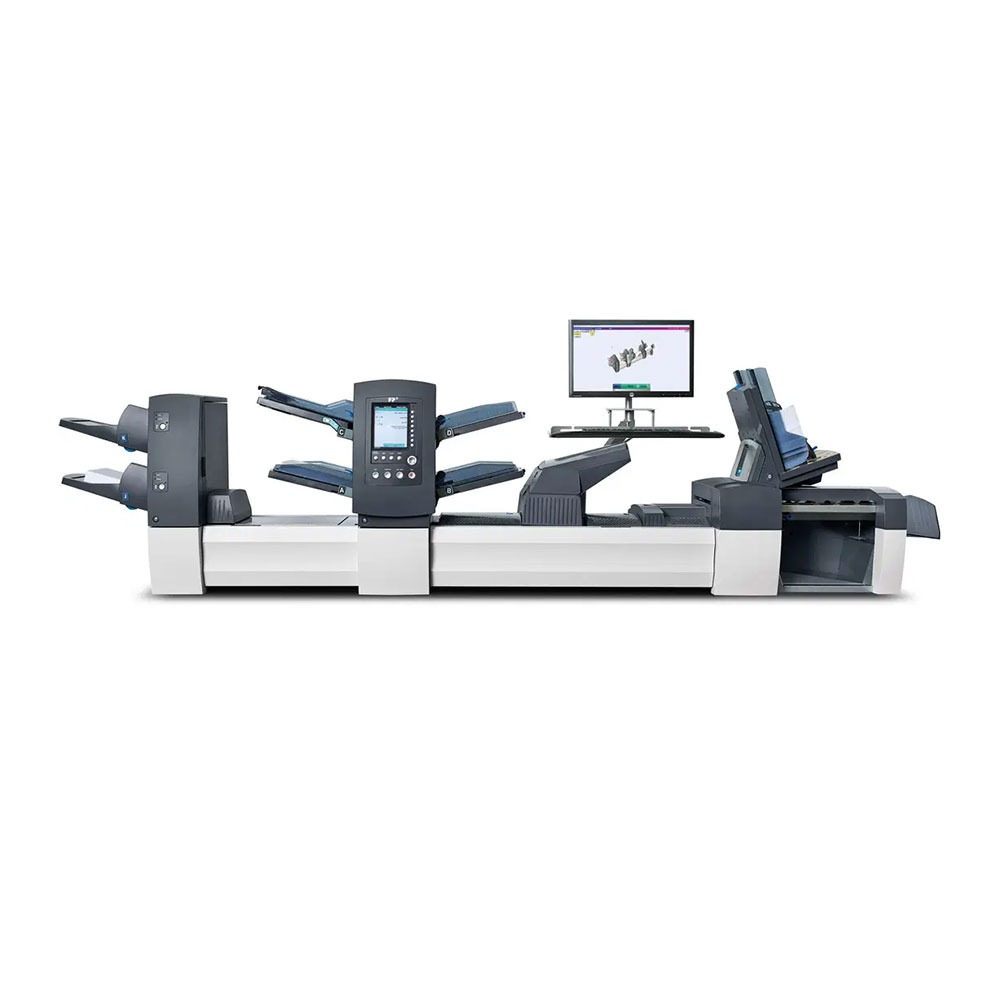

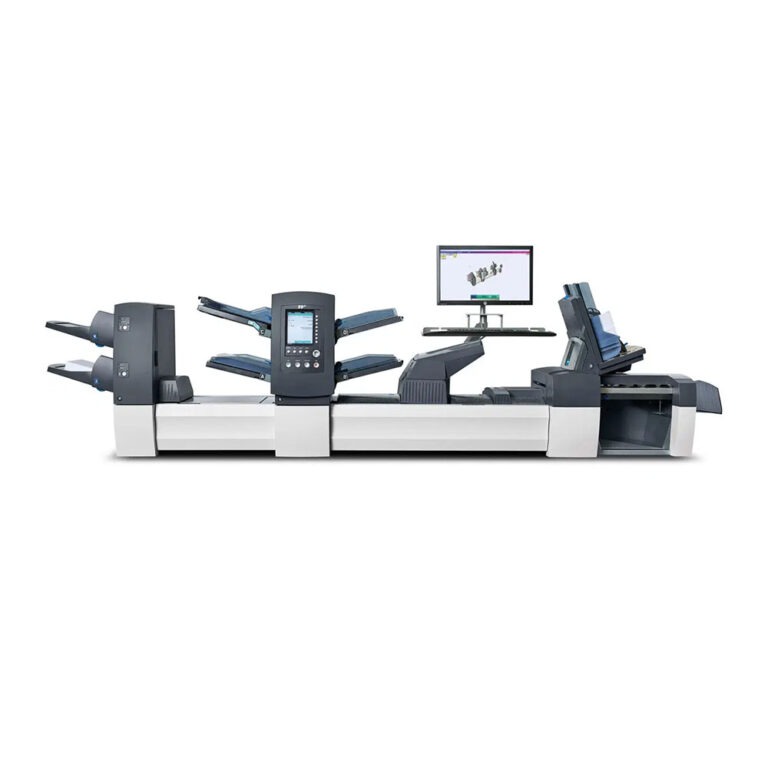

FPi 8140 Folder Inserter

FPi 8140 Folder Inserter

The FPi 8140 is FP Mailing’s most advanced high-production folder inserter, delivering 5,400 envelopes per hour with a monthly capacity of 200,000. Its high-capacity sheet feeders each hold 1,000 sheets, the powered vertical exit stacker holds 500 envelopes, and the customisable four-feeder tower with load-on-the-fly handling suits the most complex and demanding production mailing environments.

FPi 8140 Folder Inserter Specifications

Max Throughput (items/hr)
Up to 5,400 envelopes/hour; max 8 feed stations
Feed Stations
4-feeder tower + HC envelope feeder + up to 4 HC sheet feeders (8 stations total)
Max Sheets per Envelope
Multiple sheets (straight paper path)
Envelope Sizes Supported
89mm x 162mm to 267mm x 330mm (env); sheets up to 250mm x 356mm
Folding Modes
C-fold, Z-fold, V-fold, Double-V fold, No-fold (5 fold types); straight paper path
Double Feed Detection
Yes, thickness, length & stream feed detection; optional OMR, 1D & 2D barcode scanning
Dimensions: W x D x H
2,420 x 580 x 790
Weight
158 kg

What's included?

Free installation & setup
Device training
On-demand support
Consumables management
FPi 8140

1,000-sheet HC feeders — maximum capacity

High-capacity sheet feeders each hold 1,000 sheets, dramatically reducing reload frequency and keeping production running continuously.

200,000 monthly capacity

The FPi 8140 is built for the highest-demand production environments, with a 200,000 monthly capacity making it the most capable inserter in the FP Mailing range.
