Aqua illi

Boiling, Chilled, Sparkling or Ambient Water Dispenser

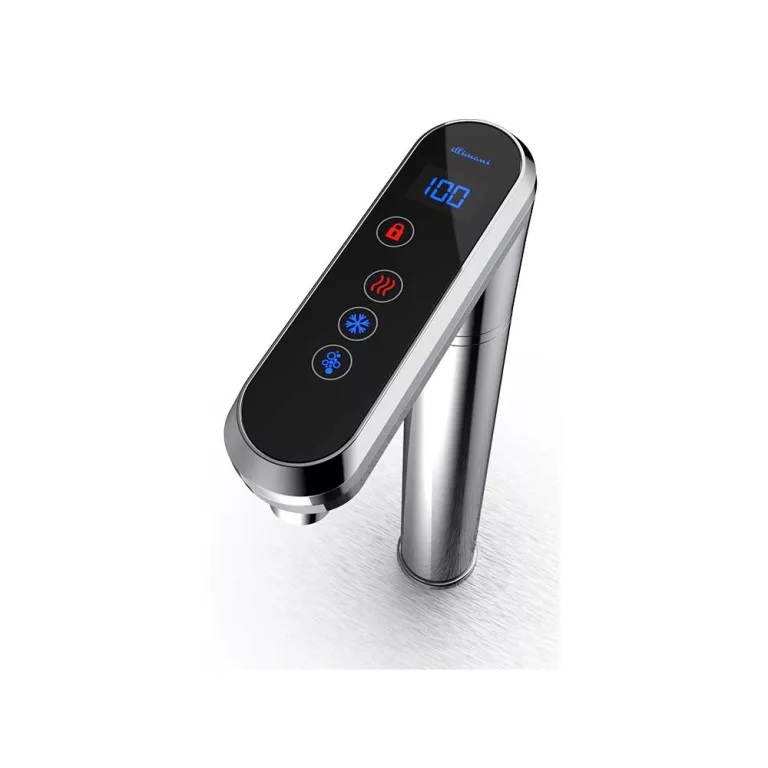

Aqua illi three-in-one touch tap

Innovative design, cutting-edge technology, and premium aesthetics.
The highest performing tap on the market today.

Aqua illi is a three-in-one touch tap, built in modular form for easy and
economical adaptability.

The ideal water dispenser for any workplace setting, Aqua illi combines a
user-friendly interface with high capacity, energy efficiency, space
savings, and ‘zero’ splash water dispensing.

Dispenses up to 45 litres or 180 cups/glasses per hour. Choose from boiling, chilled, sparkling, or ambient.

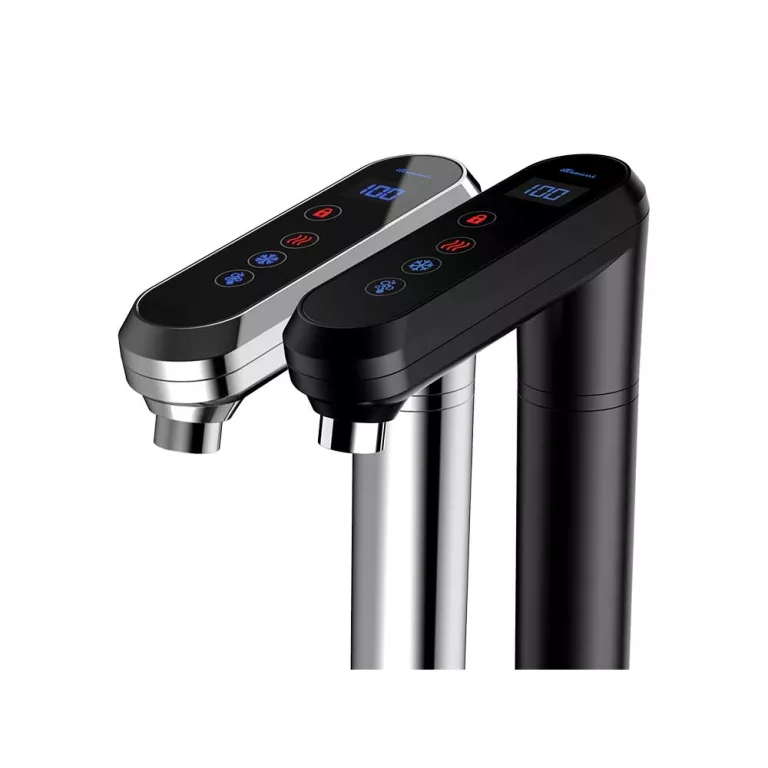

Available in Satin Black and Chrome, to complements the interiors of
any modern workplace.

  • Patented boiler design gives high volumes of boiling water
  • Undercounter installation designed to fit in a 600 x 600 mm cabinet
  • Perfect water flow with zero splash
  • Removable dispense nozzle for improved hygiene
  • Designed to fill water bottles without the need for font extension
  • Plumbed-to-waste flush-fitting drip tray
  • Safe dispense with a touch padlock feature
  • Installed in modular form to fit into the tightest of spaces
  • Pre-set fill volumes for any vessel and free flow options available
  • Touch or touchless modules available

Standard Aqua illi Tap

  • Tap 303H mm x 110D mm Ø45mm tube
  • Dispense height 233mm from nozzle to drip tray
  • Tap extension available – 60mm and 110mm *additional to the
    standard illi tap height
  • 1 x Potable cold mains water supply terminating in a 15mm Ballofix
    isolation valve
  • 3 x 220 – 240V ac 50Hz
  • 13A power sockets
  • 1 x 40mm upstand trapped waste supply

Output per hour


  • Up to 45 litres or 180 cups per hour


  • 45 litres of 180 250ml glasses
