Secure, user-friendly technologies to support hybrid workstyles

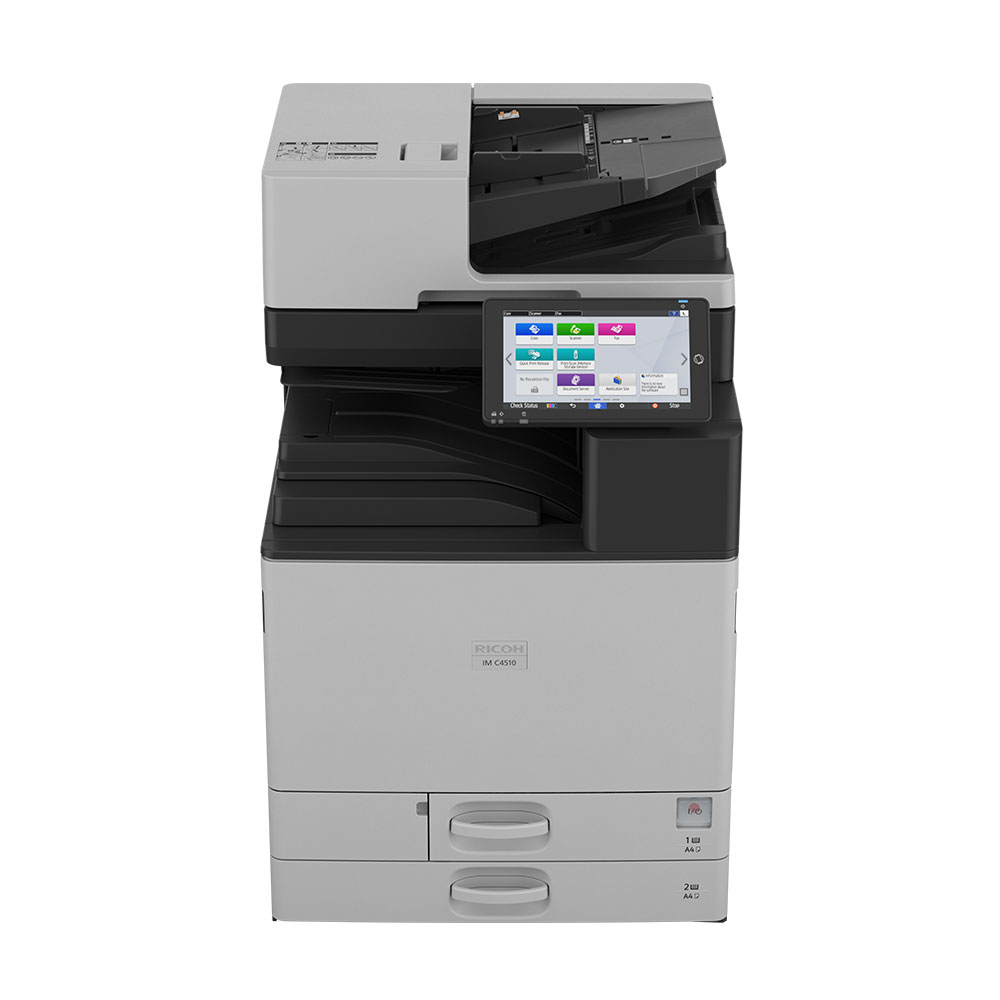

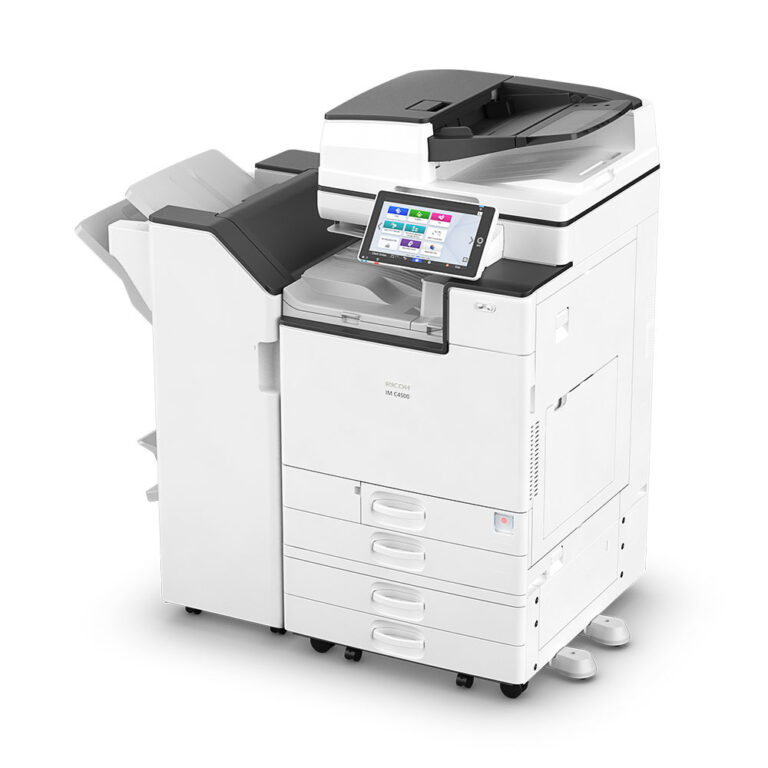

The RICOH IM C4510(A) is designed to help businesses reap the benefits of digital work routines while operating more sustainably. It’s tailored for high-volume settings, providing your business with mobility, security and enhanced productivity.
This intelligent device delivers vibrant 4800 x 1200 dpi precision, robust media handling, remote management and print speeds of up to 45 ppm. Enjoy cloud connectivity, remote scanning and sharing capabilities, as well as simplified task management – all in one device.
The 220-sheet Single Pass Document Feeder of the IM C4510(A) device allows effortless digitisation of documents by scanning two sides of a document in one pass, up to 300 images per minute.
Even smaller documents such as business cards can be scanned with ease. With advanced scan-to functionality and direct scanning to cloud services, sharing information among employees is easy.
The advanced communication hub is built on the RICOH Always Current Technology platform, providing your workplace with the agility to add upgrades whenever you need, keeping your device up-to-date and providing employees with the latest technology. With the ability to download and install new features, cloud services and apps, your system is always at peak performance without the need for an engineer. This device optimises document management while streamlining workflow, making it easier than ever to stay up-to-date.
An increased number of access points and connections heightens the risk of data leaks, which is a significant concern for data. However, the RICOH IM C4510 offers robust security features to address this concern.
With built-in user authentication, hard drive encryption and password protection, you can be certain that your data is secure. Additionally, a data overwrite feature is included to protect your information without impacting productivity.
The Ricoh IM C4510 is ENERGY STAR™ certified and EPEAT® Gold rated, with a default Auto Off timer setting that minimises power consumption, decreases operating expenses and reduces your environmental impact.
Moreover, the PET toner bottles consist of 100% recycled plastics and the device has exceptionally low TEC values of 0.45 kWh/week. This demonstrates the device’s eco-conscious design, ensuring sustainable operations.
| Warm-up time | 23 seconds |
| First copy speed: B/W | 3.6 seconds |
| First copy speed: full colour | 5.4 seconds |
| Continuous output speed | 45 ppm |
| Memory: standard | 8 GB |
| Memory: maximum | 8 GB |
| SSD: standard | 256 GB |
| SSD: optional (maximum) | 1 TB |
| HDD: optional | 320 GB |
| ARDF capacity | 100 sheets |
| SPDF capacity | 220 sheets |
| Weight ARDF model (kg) | 94.4 |
| Weight SPDF model (kg) | 100.8 |
| Dimensions ARDF model: WxDxH | 587 x 701 x 913 mm |
| Dimensions SPDF model: WxDxH | 587 x 701 x 963 mm |
| Power source | 220 – 240 V, 50 – 60 Hz |
| Multiple copying | Up to 999 copies |
| Resolution | 600 dpi |
| Zoom | From 25% to 400% in 1% steps |
| First print speed: B/W | 3.2 seconds |
| First print speed: full colour | 5.2 seconds |
| CPU | ApolloLake E3940 1.6 GHz |
| Printer language: standard | PCL5c, PCL6, PostScript 3 (emulation), PDF direct (emulation) |
| Printer language: option | Genuine Adobe® PostScript®3™, XPS, PictBridge, PDF Direct from Adobe® |
| Print resolution: maximum | 4,800 x 1,200 dpi equivalent |
| Network interface: standard | Ethernet 10 base-T/100 base-TX/1000 base-T, USB Host I/F Type A, USB Device I/F Type B |
| Network interface: option | Wireless LAN (IEEE 802.11 a/b/g/n/ac), Additional NIC (2nd port) |
| Mobile printing capability | Apple AirPrint, Mopria®, Ricoh Smart Device Connector |
| Windows® environments | Windows® 8.1, Windows® 10, Windows® 11, Windows® Server 2012R2, Windows® Server 2016, Windows® Server 2019, Windows® Server 2022 |
| Mac OS environments | Macintosh OS X v10.15 or later |
| UNIX environments | UNIX Sun® Solaris, HP-UX, SCO OpenServer, RedHat® Linux Enterprise, IBM® AIX |
| SAP® environments | SAP® R/3®, SAP® S/4® |
| Other supported environments | IBM iSeries |
| Scanning speed: ARDF (A4 LEF, B/W full colour) | 80 ipm (200/300 dpi) |
| Scanning speed: SPDF (A4 LEF, 200dpi, B/W) | 150 ipm (simplex)/300 ipm (duplex) |
| Resolution: maximum | 1,200 dpi |
| File formats | Single Page TIFF, Single page JPEG, Single page PDF, Single page High compression PDF, Single page PDF/A, Multi page TIFF, Multi page PDF, Multi page High compression PDF, Multi page PDF/A, Single page Encryption PDF, Multi page Encryption PDF, Single/multi OCR (optional) |
| Scan modes | E-mail, Folder, USB |
| Circuit | PSTN, PBX |
| Transmission speed | 3 seconds |
| Modem speed: maximum | 33.6 Kbps |
| Resolution: standard | 8×3.85 line̸ mm, 200×100 dpi |
| Resolution: option | 16×15.4 line̸ mm, 400×400 dpi |
| Compression method | MH, MR, MMR, JBIG |
| Scanning speed (A4 LEF): ARDF | 68 spm |
| Scanning speed (A4 LEF): SPDF | 94 spm |
| Memory: standard | 4 MB, (320 pages) |
| Memory: maximum | 60 MB, (4,800 pages) |
| Recommended paper size – Standard paper tray(s) | SRA3, A3, A4, A5, A6, B4, B5, B6, Envelopes |
| Recommended paper size – Optional paper tray(s) | SRA3, A3, A4, A5, A6, B4, B5, B6, Envelopes |
| Recommended paper size – Bypass tray | SRA3, A3, A4, A5, A6, B4, B5, B6, Envelopes, Custom Size paper |
| Paper input: standard | 1,200 sheets |
| Paper input: maximum | 4,700 sheets |
| Paper output: standard | 500 sheets |
| Paper output: max. | 3,625 sheets |
| Paper weight – Trays | 60 – 300 g̸ m² |
| Paper weight – Bypass | 52 – 300 g̸ m² |
| Paper weight – Duplex | 52 – 256 g̸ m² |
| Paper types | Plain paper, Recycle paper, Special paper, Color paper, Letterhead, Cardstock, Preprinted paper, Bond paper, Coated paper, Envelope, Gloss paper, Label paper |
| Power consumption: max. | Less than 1,850 W |
| Power consumption operation: B&W | 576.6 W |
| Power consumption operation: Full colour | 664.9 W |
| Power consumption: ready | 40.5 W |
| Power consumption: sleep | 0.32 W |
| TEC* | 0.45 kWh⁄week |
| Toner (black) | 42,000 prints |
| Toner (cyan/magenta/yellow) | 28,000 prints |
| Consumable yield based on 5% coverage⁄A4 | 4p⁄ j |
